The international variant of Galaxy S4 (LTE) running on Vodafone UK network has just received the latest Android 4.4.2 KitKat update with firmware build number I9505XXUFND7 from Samsung.
The new KitKat firmware is part of the regular maintenance update that brings a handful of bug-fixes and feature enhancements exclusively for Vodafone users in the UK.
Those residing outside UK cannot find this update via Samsung KIES or Over-The-Air (OTA). UK users who missed the OTA update notification or cannot access the same via KIES can install this update manually via Odin, using our step-by-step guide below.
I9505XXUFND7 Android 4.4.2 Firmware Details
Model name: GALAXY S4 LTE
Country: United Kingdom (Vodafone)
Version: Android 4.4.2
Build date: Thu, 01 Jan 1970 00:00:00 +0000
Product Code: VOD
As this is a Vodafone branded firmware for UK, it cannot be installed on non-UK handsets.
IBTimes UK reminds its readers that it will not be held liable for any damage to device during or after firmware/root installation. Users are advised to proceed at their own risk.
1. Install necessary USB Drivers for Galaxy S4 LTE (GT-I9505) on the computer.
2. USB Debugging Mode should be enabled on the phone by navigating to Settings >> Developer Options.
3. Back up your important data to avoid potential data loss during firmware installation.
4. Ensure the phone is factory unlocked (not locked to any specific carrier).
5. Verify Galaxy S4 LTE has at least 80 percent battery charge.
6. The Android 4.4.2 I9505XXUFND7 firmware is compatible with Galaxy S4 LTE (GT-I9505) only. Do not attempt installing it on incorrect variants as it may brick the device. Verify the model number of the Galaxy S4 by navigating to Settings >> About Phone.
Steps to Update Galaxy S4 LTE with Android 4.4.2 I9505XXUFND7 KitKat Stock Firmware
Step 1: Extract Android 4.4.2 I9505XXUFND7 firmware zip file using WinRAR/7-Zip or WinZip to obtain a .tar.md5 file and some other optional files.
Step 2: Next, extract the Odin zip file to get Odin3 v3.09.exe along with a few other files.
Step 3: Power off the Galaxy S4 LTE and boot the device into Download Mode. To do so, press and hold Volume Down, Home and Power buttons together until a construction Android robot icon with a warning triangle appears on screen. Then keep tapping Power button to progress into Download Mode.

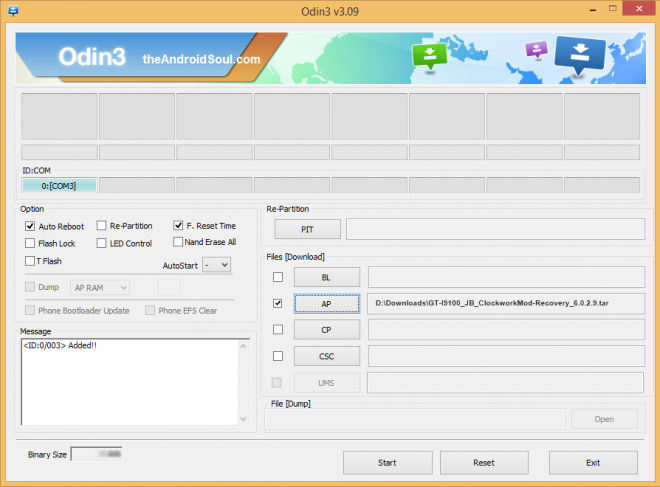

Step 5: Launch Odin on computer as an Administrator.
Step 6: Now connect Galaxy S4 to computer with USB cable in Download Mode. When Odin detects the device and a pop-up message reading "Added!" appears on screen, the ID: COM box will turn yellow with the COM port number.
Note: If the Added message fails to appear, then try re-installing USB drivers or changing the port on computer.
Step 7: In Odin, click on AP button and select the firmware file with .tar.md5 extension
Step 8: In Odin, select Auto Reboot and F. Reset Time options. But, uncheck the Re-partition option.
Step 9: After ensuring that Step 7 and Step 8 are done correctly, hit the Start button in Odin to begin installing the firmware.
Step 10: After the firmware is installed, a PASS message with a green background appears in the left-most box at the top of Odin. Galaxy S4 will then reboot to the Home screen. It is now safe to disconnect the USB cable and remove the phone from the computer.
Your Galaxy S4 is now running I9505XXUFND7 Android 4.4.2 KitKat stock firmware. Head over to Settings >> About Phone to verify that the firmware is installed on the device.
Troubleshooting: If the Galaxy S4 LTE is stuck at boot animation after Step 10, then boot into recovery mode (press and hold the Volume Up, Home and Power buttons together), and perform Wipe data/Factory Reset and Wipe Cache Partition task before choosing the Reboot System Now option.
Note: In recovery mode, use Volume keys to navigate between options and Power key to select the option. Performing data wipe task will erase your device's internal memory and not external SD card data.
Those who have already updated their Galaxy S4 (LTE) to the latest KitKat official firmware can root the same using our step-by-step guide posted here.
[Source: Team Android]
